Apollo Low Pressure (LP) NIOSH-Approved, Type-CE Respirator Systems and Accessories

Apollo Low Pressure (LP) NIOSH-Approved, Type-CE Respirator Systems and Accessories

By on Sep 26th 2023

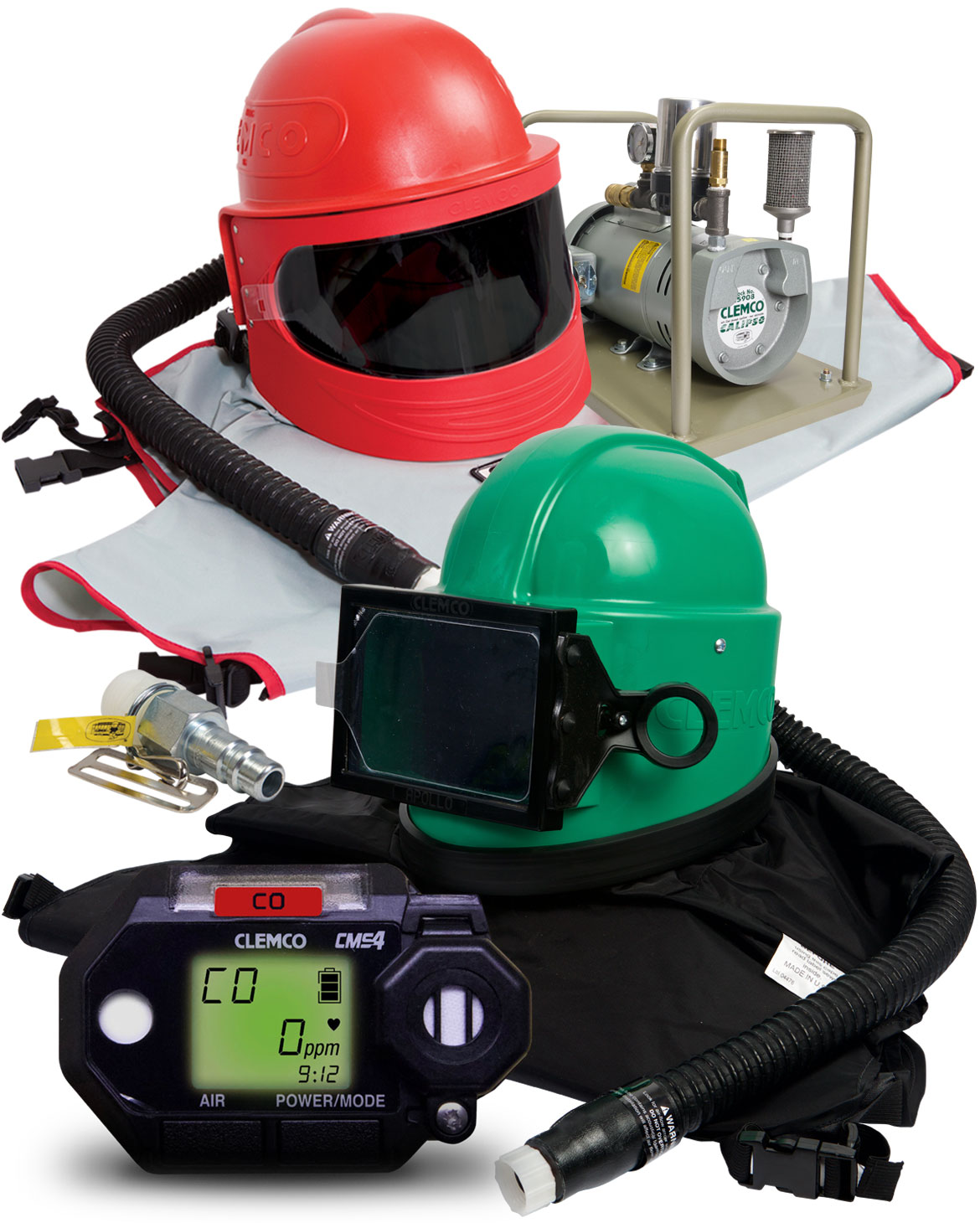

Apollo Low Pressure (LP) NIOSH-Approved, Type-CE Respirator Systems and Accessories


LP respirator systems for intermittent abrasive blasting or for blasting in moderate temperatures when breathing air is supplied by an ambient air pump.

Abrasive blasting is difficult and dangerous. The last thing you or your crew needs on their minds is worry about their safety. Apollo LP Respirators and accessories meet OSHA safety requirements for protection from inhalation hazards and protection from rebounding abrasive. Your crew will literally breathe easier with a Clemco Constant Flow Connector Air-Flow Device or a CMS-4 In-Helmet CO Monitor-Alarm. Provide your crew with the comfort, convenience, and safety they need to stay focused and remain productive—with Clemco’s Apollo LP Respirator Systems and accessories.

a group of safety gear
  • Apollo 600 LP Supplied-Air Respirator – Maximum protection and durability combined with comfort and mobility.

    Shop Apollo 600 LP Supplied-Air Respirators

  • Apollo 20 LP Supplied-Air Respirator – For less frequent or demanding abrasive blasting applications without sacrificing operator safety and comfort or equipment durability.

    Shop Apollo 20 LP Supplied-Air Respirators

  • Ambient Air Pumps – For conveying breathing air from a clean-air environment into your operators’ LP respirators. Two options to fit your crew size and their LP respirators’ CFM and psi requirements.

    Shop Ambient Air Pumps

  • Constant Flow Connector Air-Flow Device – Keeps operators safe and confident with two options of breathing air filters that remove oils and particulates from the air supply of one to four operators.

    Shop Breathing-Air Filters

  • CMS-4 In-Helmet CO Monitor-Alarm – Alerts operators if carbon monoxide enters their air supply. Unique, compact design quickly attaches inside the helmet of an Apollo 600 or 20 LP Respirator so that operators can self-monitor if CO is present.

    Shop CO Monitor-Alarms


Apollo 600 Low Pressure NIOSH-Approved, Type-CE Respirator

Your operators will be confident and comfortable during long and demanding shifts knowing that they are protected by the industry standard in safety and durability. That peace of mind increases their productivity and reduces your stress.

Comfort and Convenience

  • Two Suspension System Options:

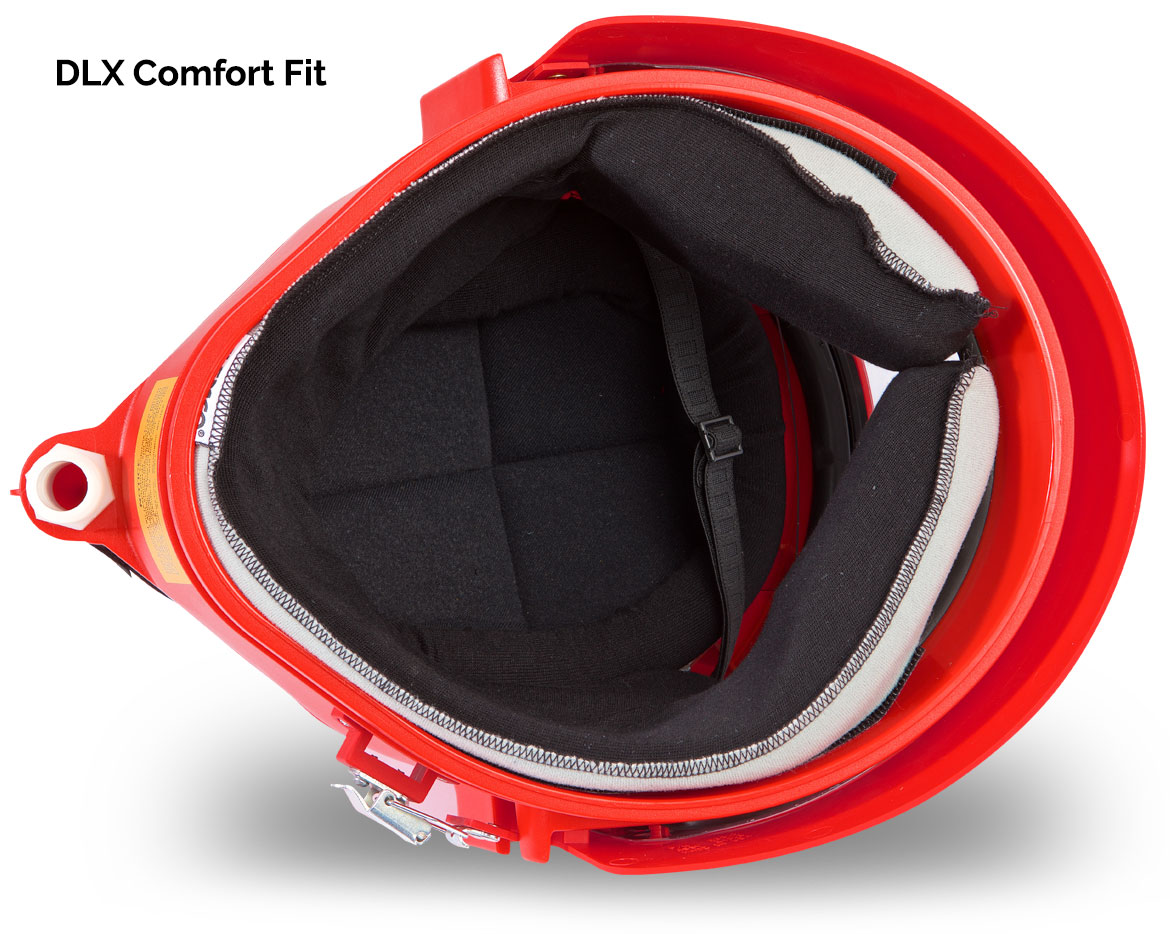

    • DLX Comfort Fit – Fits like a motorcycle helmet. It features multiple soft, washable, fabric-covered pads that easily attach to the inside of the helmet shell.

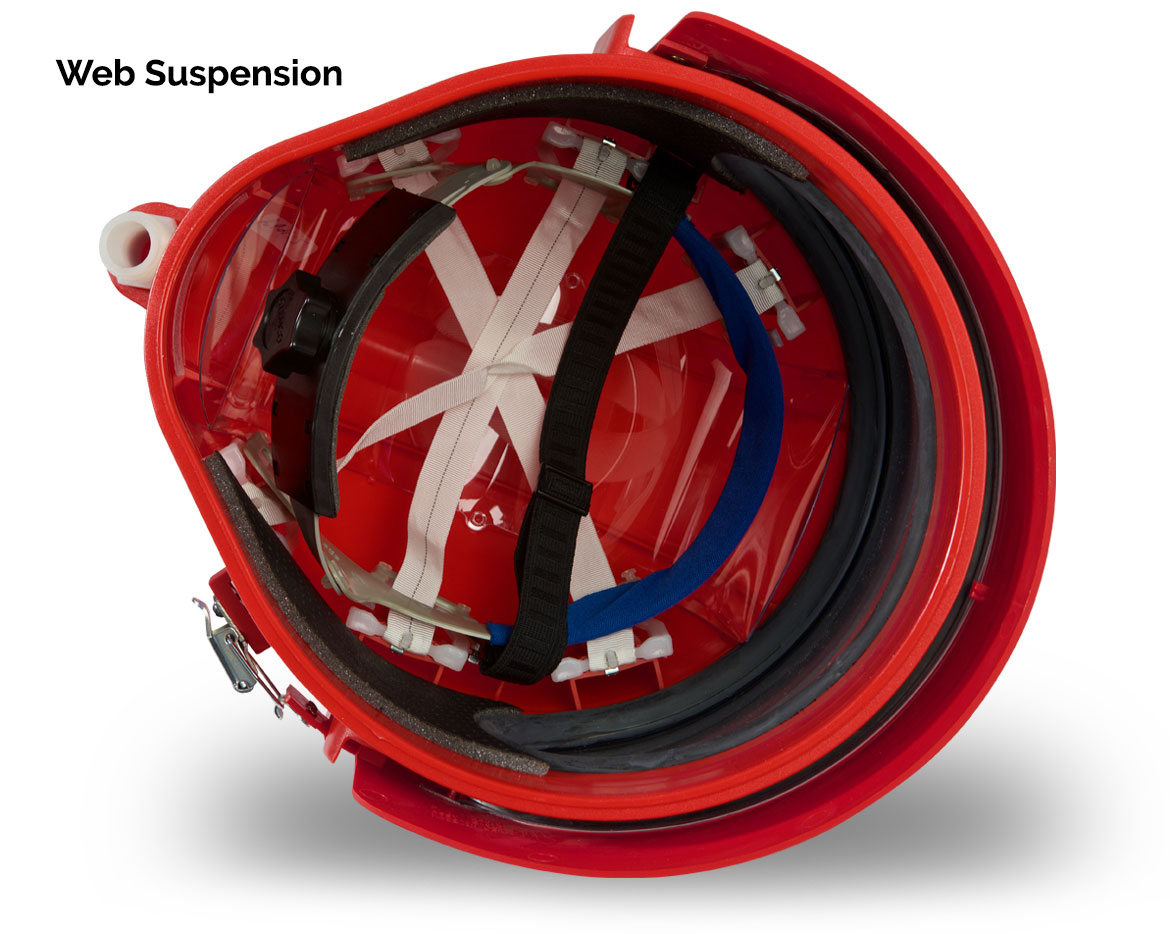

    • Web Suspension – Features a six-point, knob-style adjustment system and a replaceable sweatband.
  • Crown-Mounted Air Baffle – Delivers ample air supply to the operator’s head and face.

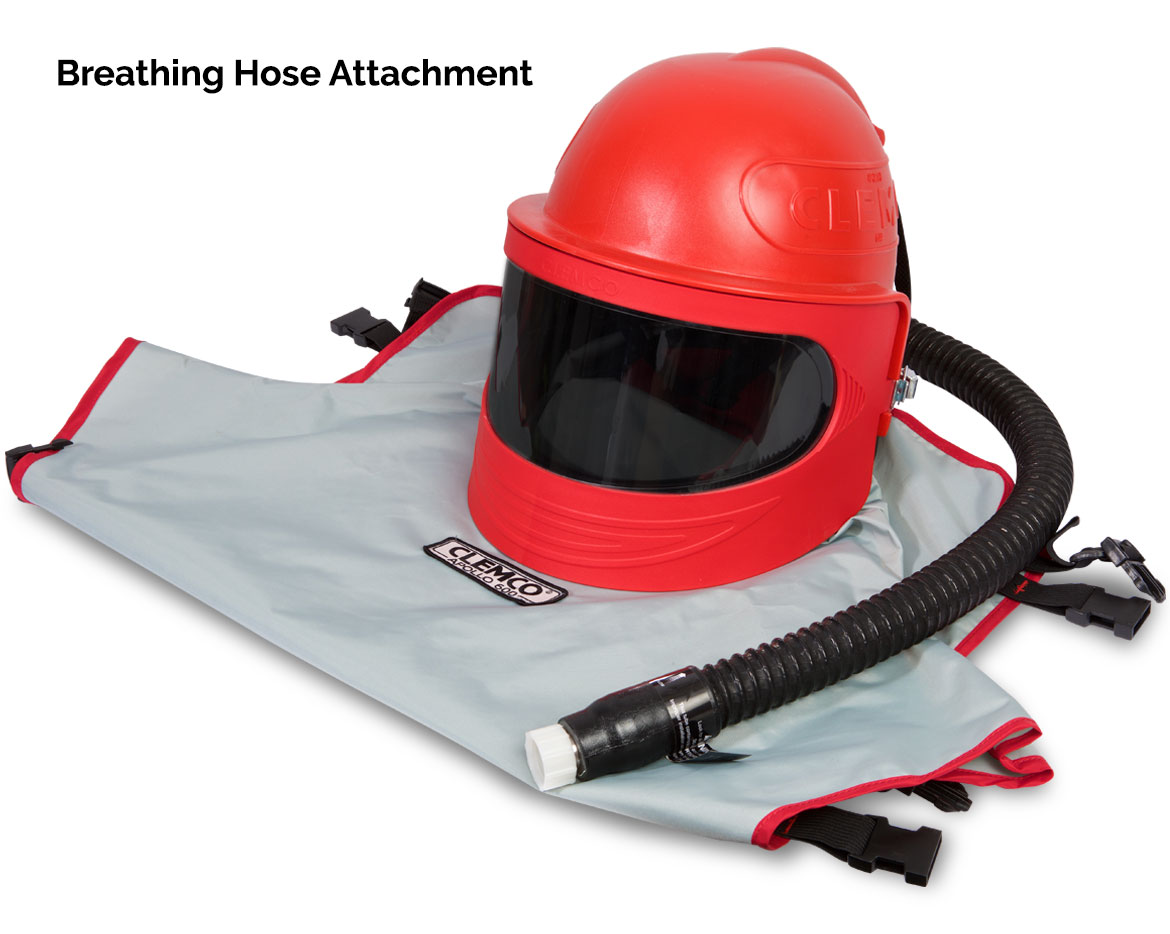

  • Breathing Hose Attachment – At the helmet’s center rear for a balanced feel and fit.
  • Zip-In-and-Out Inner Collar – Can easily be removed for cleaning.
  • Integrated Carrying Strap ­– Makes respirator easy to carry or hang when not in use.
  • Easy Field Maintenance ­– Replaceable components are quick and simple to install, reducing downtime.
a red helmet with black lining
a red helmet with an inner strap
a red and grey helmet with a hose

a grey and red cape
a black band on a white background
a red helmet with a visor

Performance and Durability

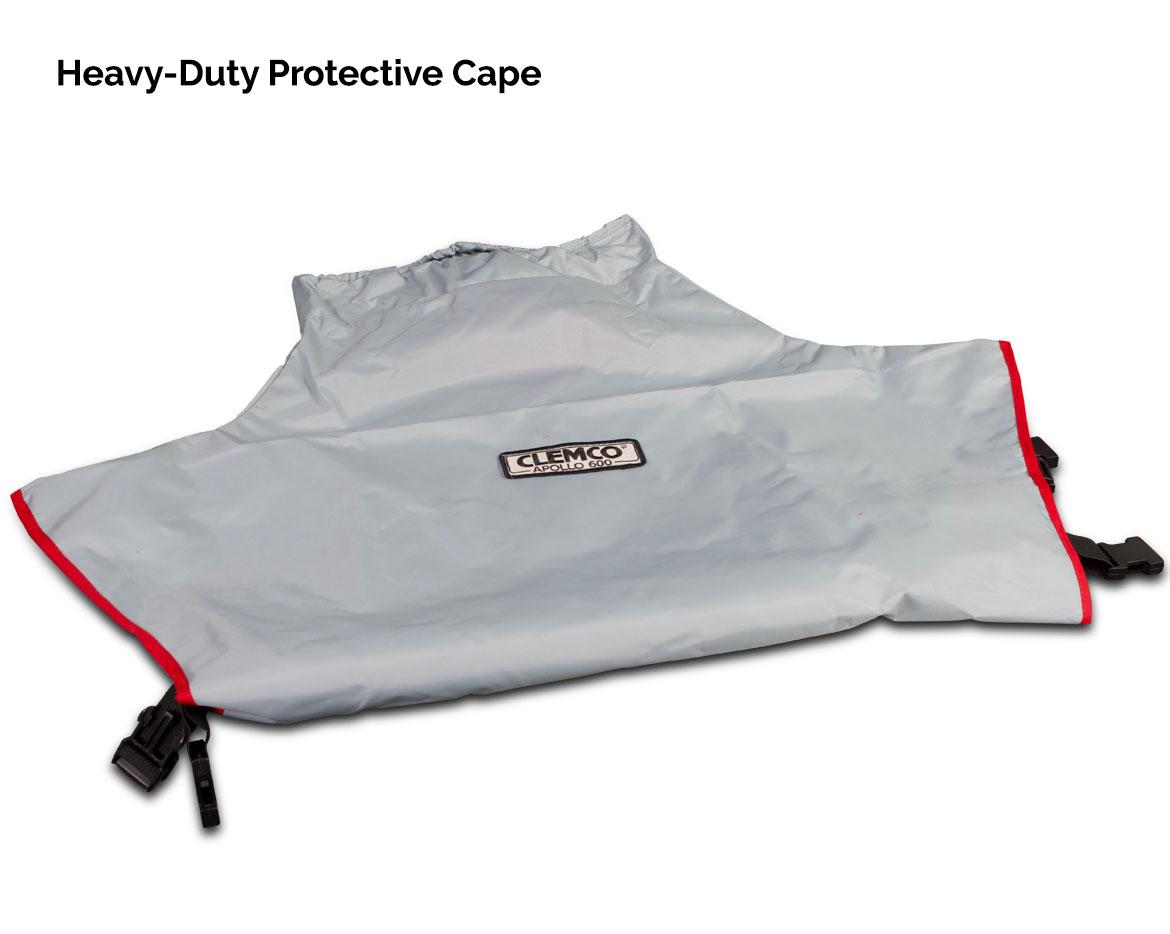

  • Heavy-Duty, Silver-Gray Protective Cape – Protects operators from abrasive rebound while also reflecting the sun’s rays, minimizing heat absorption to help operators stay cool.

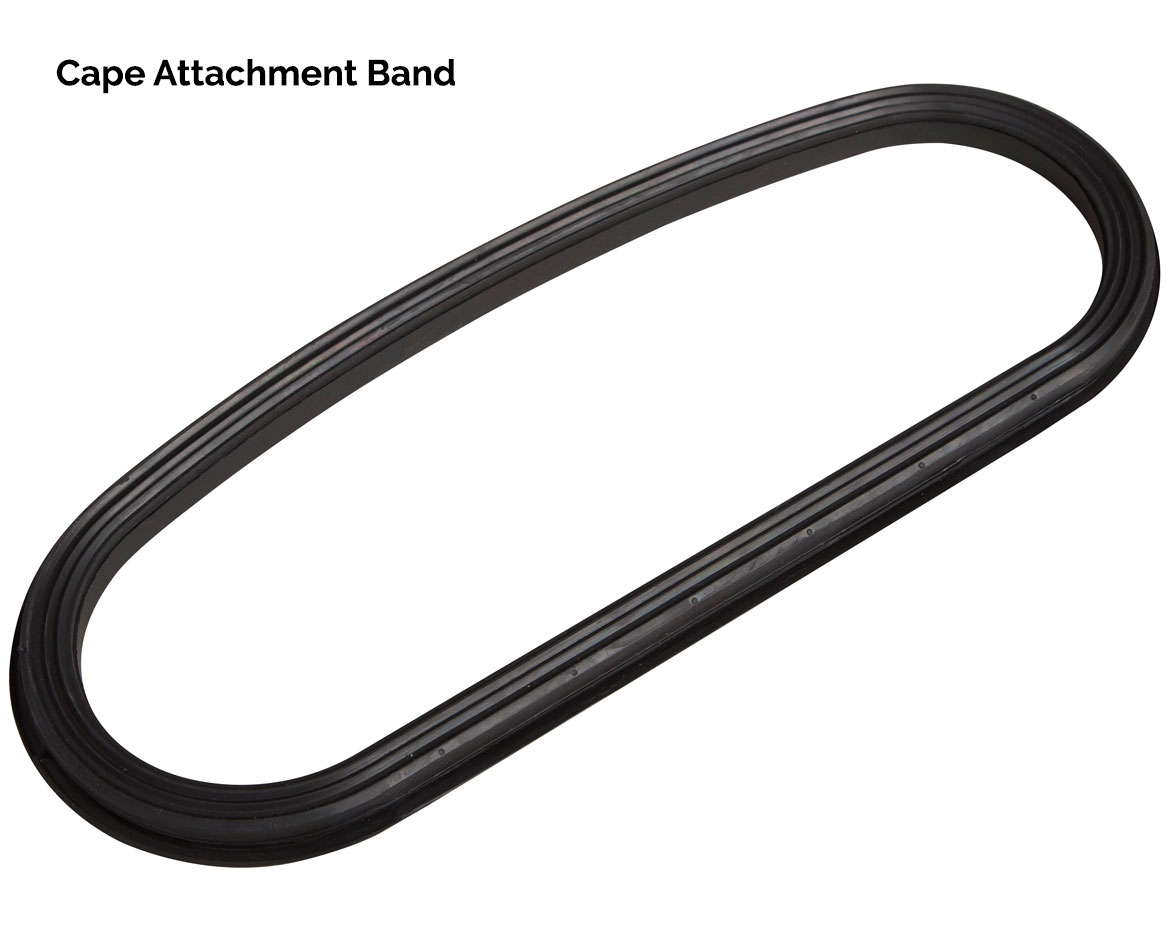

  • Cape Attachment Band – Wraps around the bottom rim of the helmet shell and easily fastens or detaches with a ratchet-style buckle. Enables operators to quickly replace worn capes.

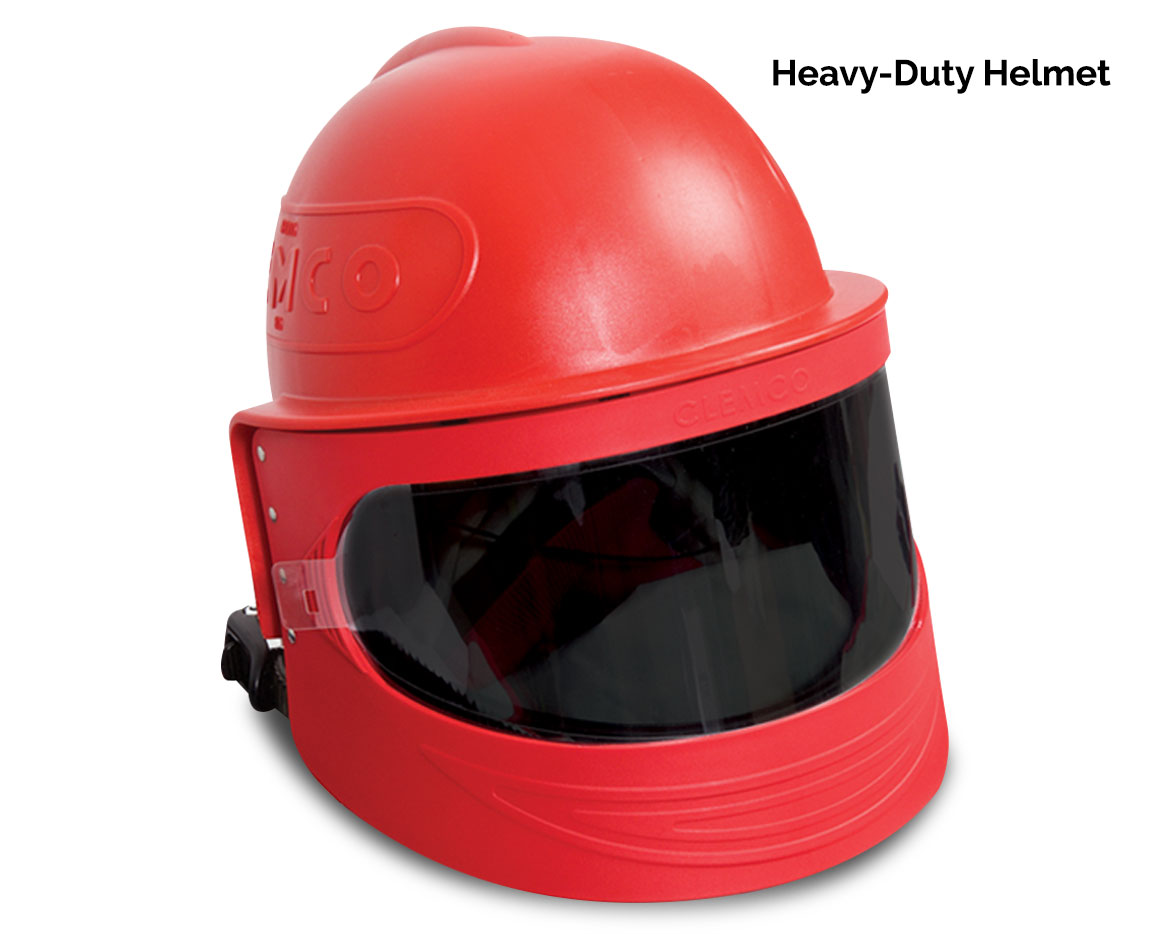

  • Heavy-Duty Helmet – Single-shell construction. Protects operators from rebounding abrasives and overhead obstacles that can cause head, eye, or face injuries.
  • 180° Wide View Window – Industry’s largest view window for maximum visibility.
  • Quick-Change, Three-Lens Window System – Keeps Out Dust and Media:
    • Sturdy Inner Lens that is held in place by a molded gasket seals out dust and media.
    • Middle Lens further seals out dust and media while providing a layer of protection over the inner lens.
    • Up to Three Perforated, Tear-Away Outer Lenses protect the middle lens from pitting.

Safety and Certifications

  • NIOSH-approved, Type-CE supplied-air respirator ensures your operators have safe breathing air and are compliant with safety regulations.
  • OSHA assigned protection factor of 1000 x permissible exposure limit (PEL) for hazardous substances.
  • ANSI Z89.1-2003 Type 1, Class G Protective Hard Hat Rating
  • ANSI Z87.1-1989 Face and Eye Protection
  • ANSI Z 3.19: Noise Reduction Rating (NRR): NRR 9 with DLX Comfort-Fit Suspension / NRR 8 with Web Suspension.

construction workers at a construction site

Apollo 20 Low Pressure NIOSH-Approved, Type-CE Respirator

Lightweight construction that offers the safety and durability of heavier respirators but that also reduces operator fatigue. Ideal for less frequent or demanding abrasive blasting applications while still fully ensuring your operators’ safety and comfort during long shifts.

a green helmet with black inside
a green helmet with black straps
a green helmet with a black cape

Comfort and Convenience

  • Two Suspension System Options:

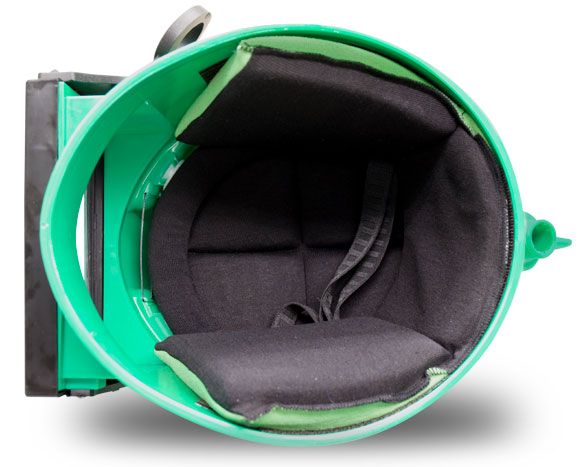

    • DLX Comfort Fit – Fits like a motorcycle helmet. It features multiple soft, washable, fabric-covered pads that easily attach to the inside of the helmet shell.

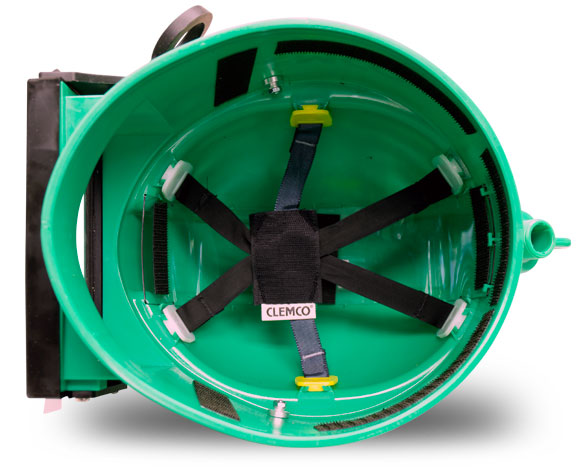

    • Web Suspension – Features a six-point, knob-style adjustment system and a replaceable sweatband.

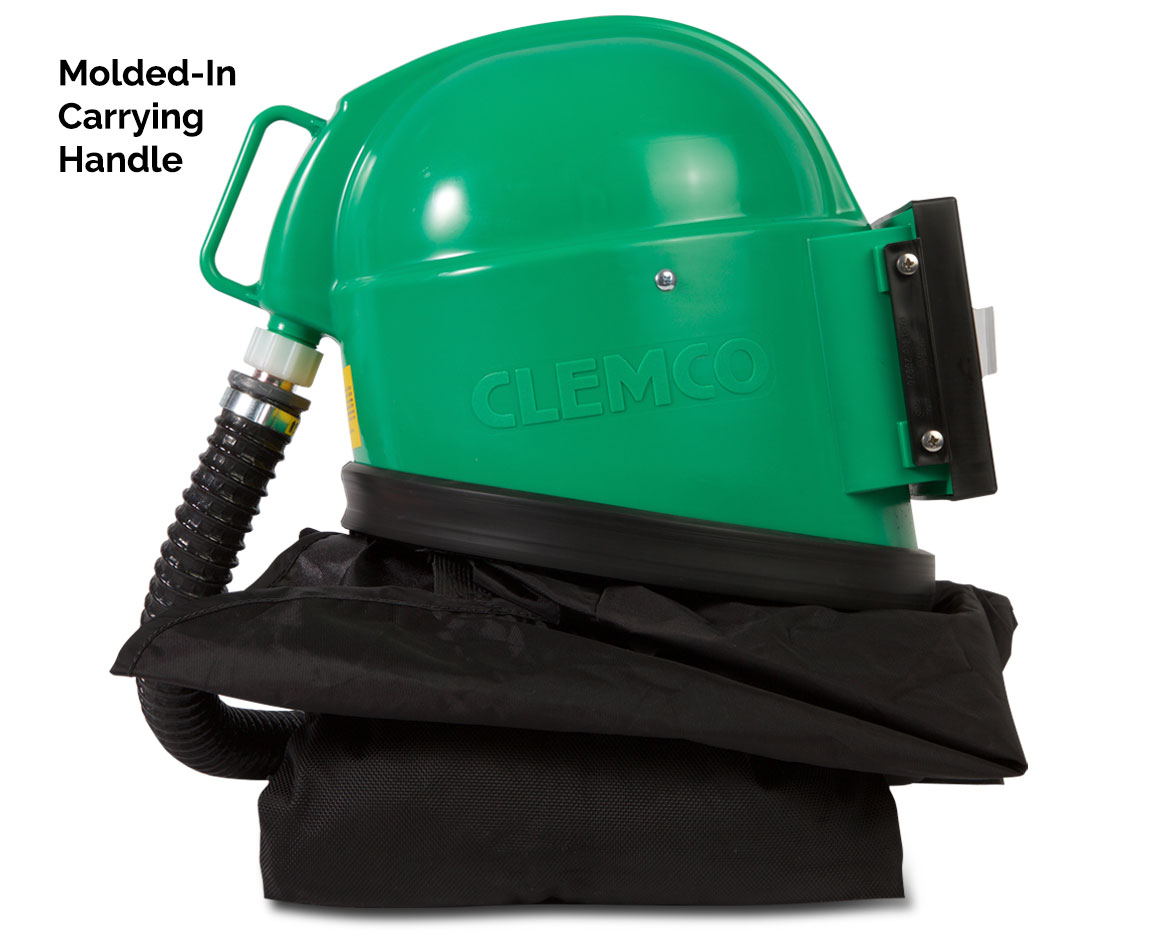

  • Molded-In Carrying Handle – Makes respirator easy to carry around job sites.
  • Easy Field Maintenance ­– Replaceable components are quick and simple to install, reducing downtime.


Performance and Durability

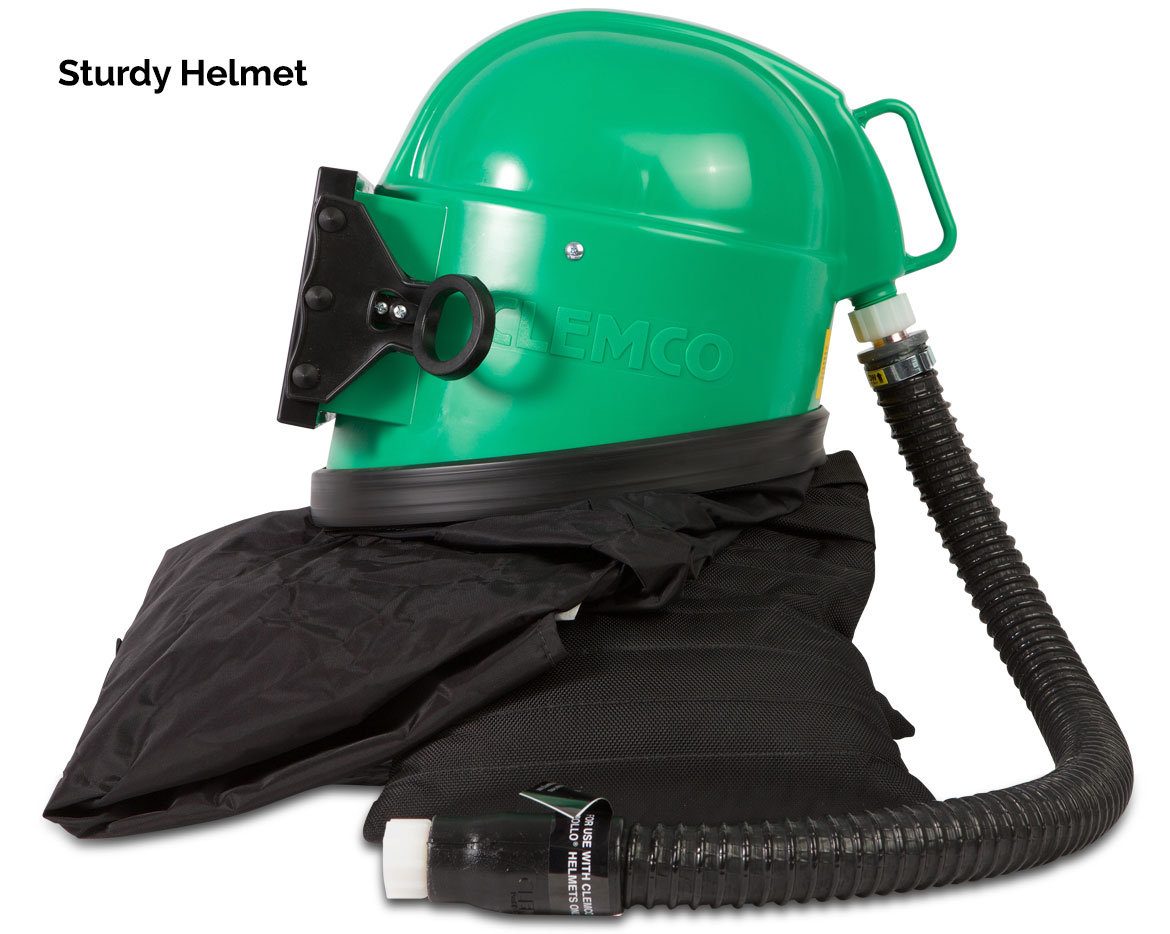

  • Sturdy Helmet – Single-shell construction. Protects operators from rebounding abrasives that can cause eye or face injuries.
  • Heavy-Duty Protective Cape – Protects operators from abrasive rebound.
  • Rectangular Window – Provides clear field of vision.
  • Quick-Change, Three-Lens Window System – Keeps Out Dust and Media:
    • Sturdy Inner Lens that is held in place by a molded gasket seals out dust and media.
    • Middle Lens further seals out dust and media while providing a layer of protection over the inner lens.
    • Up to Three Perforated, Tear-Away Outer Lenses protect the middle lens from pitting.
a green helmet with a hose
a green helmet with a black tube


construction workers at a construction site

Safety and Certifications

  • NIOSH-approved, Type-CE supplied-air respirator ensures your operators have safe breathing air and are compliant with safety regulations.
  • OSHA assigned protection factor of 1000 x permissible exposure limit (PEL) for hazardous substances.
  • ANSI Z87.1-1989 Face and Eye Protection
  • ANSI Z 3.19: Noise Reduction Rating (NRR): NRR 9 with DLX Comfort-Fit Suspension / NRR 8 with Web Suspension.

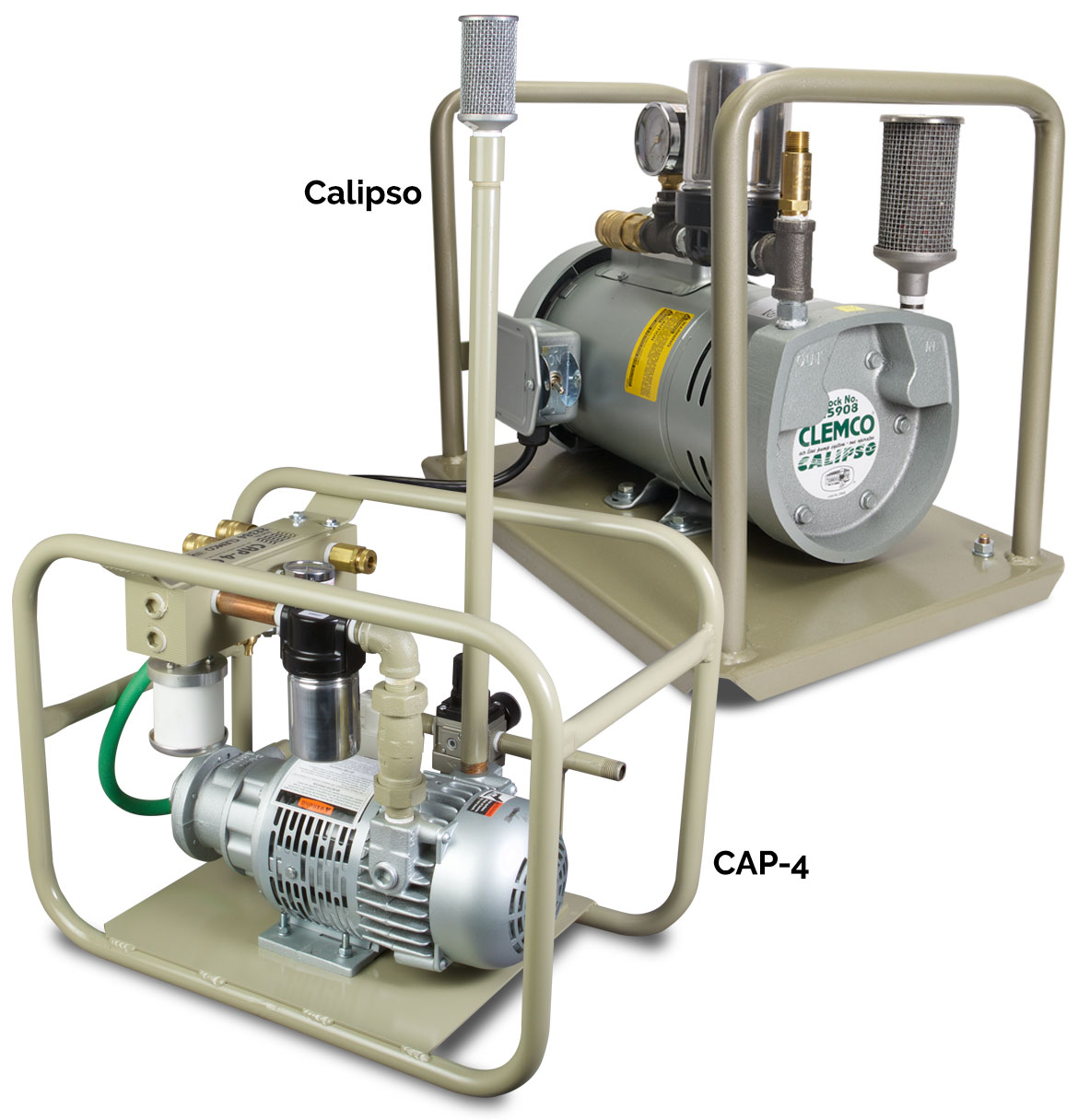

Ambient Air Pumps

Clemco Ambient Air Pumps are a cost-effective option when a high-pressure air compressor is unavailable for supplying breathing air or when operators are wearing low-pressure respirator systems.

  • Clemco Ambient Air Pumps convey breathing air from a clean-air environment outside the work area into Apollo 600 or 20 LP Respirators.
  • The units are portable and oil-free.
  • They pump Grade D breathing air without introducing CO, oil, or other contaminants into the air supply.
  • Calipso – Supplies Air for One Operator
    • Enclosed, fan-cooled electric motor.
    • For LP respirators that operate at 8 CFM up to 10 psi.
    • Technical Data Sheet
    CAP-4 – Supplies Air for One to Four Operators
    • For LP respirators that operate at 9 CFM up to 10 psi.
    • Can also supply breathing air for up to six operators wearing full face masks.
    • Powered by compressed air; works where no electric power is available.
    • Protective cage shields critical components from damage.
    • Optional integral, two-wheel cart with an extendable handle is available.
    • Technical Data Sheet
    a close-up of a machine

    a metal connector with a yellow label

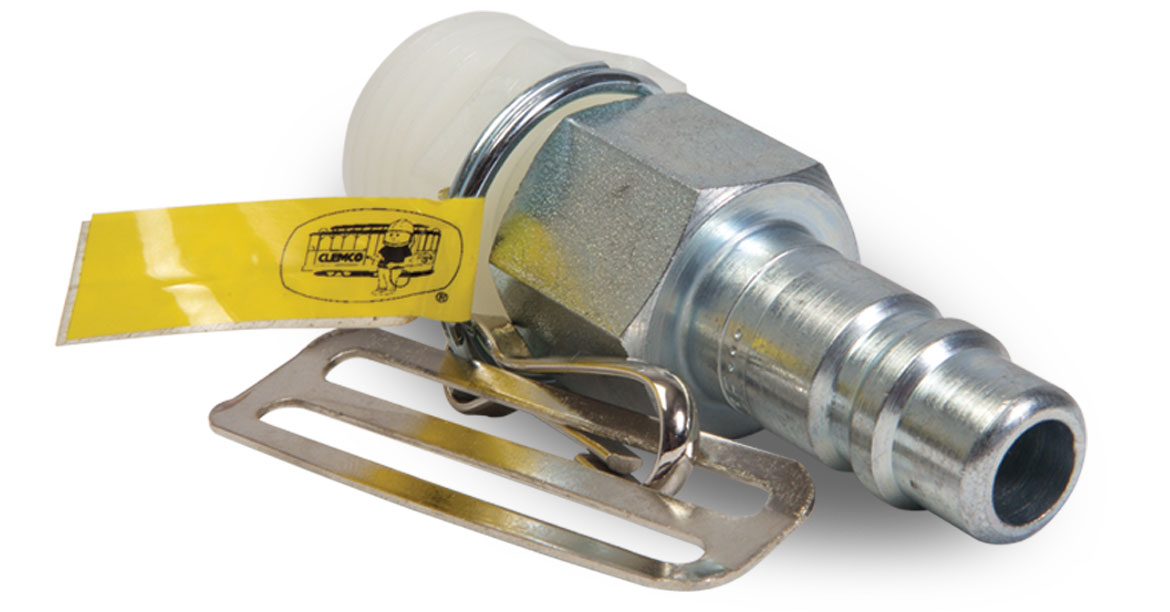

    Air-Flow Device: Constant Flow Connector (CFC)

    Clemco’s Constant Flow Connector allows operators to focus on the work at hand rather than worrying if enough breathing air is reaching their respirators, which helps them remain productive and safe:

  • No Adjustments Needed – Ensures that a fixed volume of breathing air reaches operators without adjustments, which makes for one less variable for operators to monitor, simplifying their job.
  • Maximum Flow – Supplies breathing air at maximum flow rate.

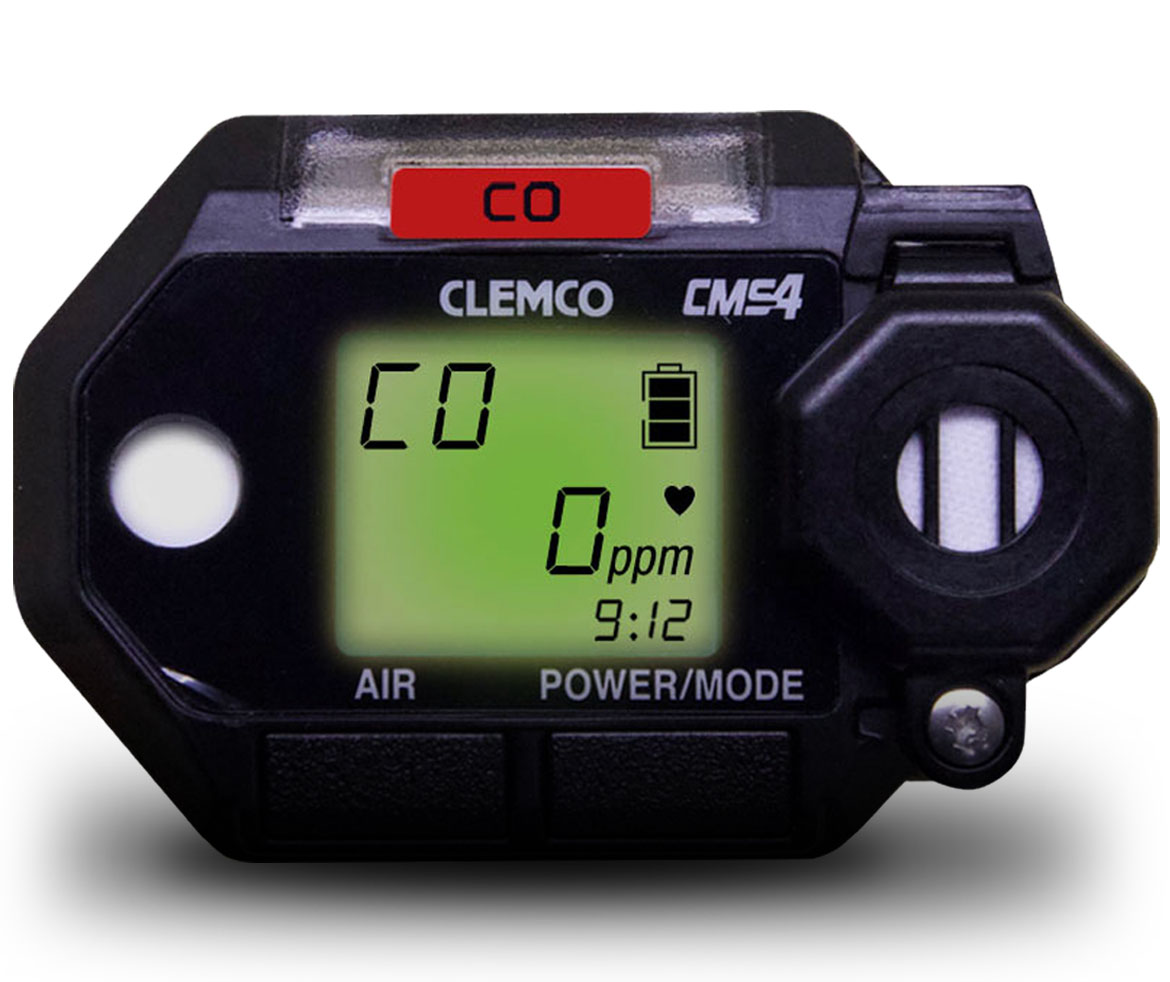

  • Carbon Monoxide Monitor-Alarm: CMS-4 In-Helmet Monitor

    Breathing air contaminated with carbon monoxide can cause serious, even fatal, injuries. Carbon monoxide has no odor, color, or taste—so by the time operators are aware of its presence, it may be too late. Protect your crew’s safety and give them peace of mind so that they can focus undistracted on their work with Clemco’s CMS-4 In-Helmet CO Monitor-Alarm:

  • One-of-a-Kind, In-Helmet Design – Unique, compact design quickly attaches inside the helmet of an Apollo 600 or 20 LP Respirator.
  • Operators Self-Monitor – In-helmet placement allows an operator to self-monitor his/her CO exposure.
  • Three Alarms – Unit triggers audible, visual, and vibratory alarms.
  • 10 ppm or 5 ppm Threshold – Unit’s threshold can be reset from 10 ppm to 5 ppm.

  • a black device with a green screen

    Videos

    CMS-4 Setup Guide: Part 1

    CMS-4 Setup Guide: Part 2


    Abrasive blasting (formerly known as sandblasting) also is called grit blasting, bead blasting, media blasting, soda blasting, dry blasting, sponge blasting, shot blasting, and shot peening. However, sand should never be used when abrasive blasting because breathing abrasive containing crystalline (free) silica can lead to serious or fatal lung disease.
