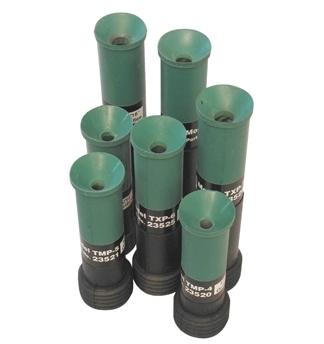

Nozzles are one of the most important pieces of sandblasting equipment, and an appropriate or inappropriate blast nozzle will affect your production. The taper and length of the blast nozzle’s inlet and outlet affects both the pattern and velocity of the abrasive blast media exiting the nozzle.
When choosing the correct size nozzle, you need to consider a few things outside of the nozzle itself. Since nozzles come in different sizes, the size you need is determined by the amount of available air in cfm, the capacity of your blast machine (as well as the ID of its piping), and the types of blast hoses you are using.
To get a better understanding of how compressor size relates to the size of your blast nozzle, check out our Compressed Air Requirement and Abrasive Consumption Chart here.
Once you have determined the appropriate size of your nozzle, you still have another choice to make: what material blast nozzle should you choose?

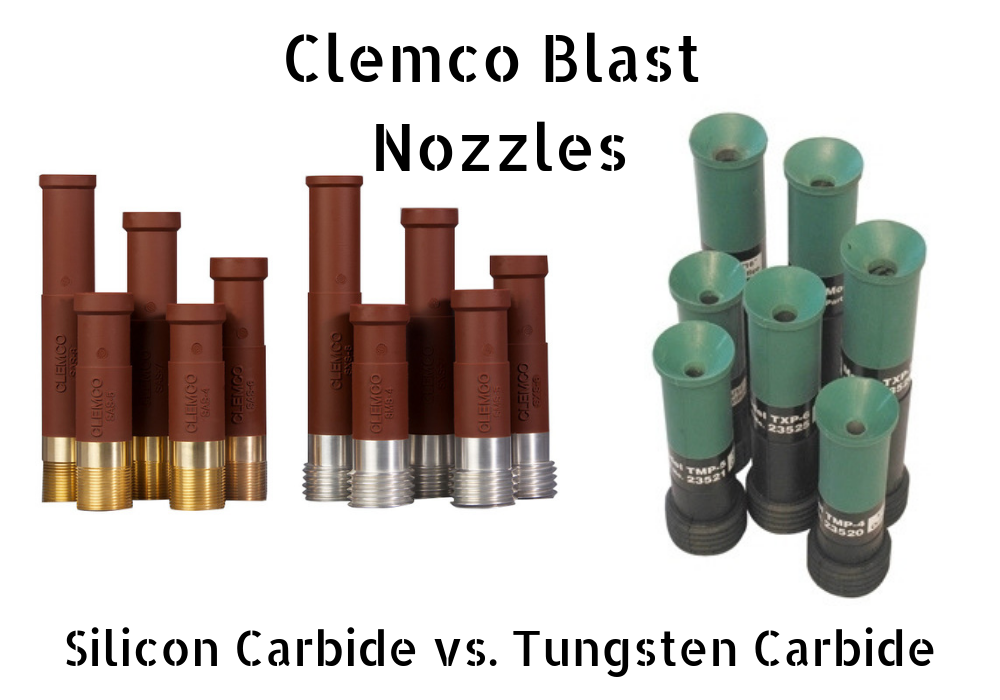

Silicon Carbide vs. Tungsten Carbide Nozzles
Both types of nozzles have their pros and cons. If you’re wondering whether you should go with a silicon carbide or tungsten carbide sandblast nozzle, here’s an overview of the two types:
Silicon Carbide nozzles are a popular choice because they are lightweight and have excellent erosion and abrasive resistance. Of the two types, silicon carbide nozzles have a longer lifespan and can last for up to 500 hours. The lighter weight is a plus for anyone who spends long hours blasting, as it won’t add much weight to your already heavy sandblasting equipment.
While silicon carbide blast nozzles generally have a longer lifespan and are lighter weight than tungsten carbide blast nozzles, they are not as durable. With less impact resistance, they are prone to cracking or even shattering if dropped on a hard surface.
These nozzles are ideal for anyone looking for a long life before needing to replace their nozzle. However, it’s important not to mishandle these, as they are the less durable option.
Tungsten carbide sandblast nozzles offer the best value when it comes to cost and durability. These rugged and durable blast nozzles work well with most abrasives. They are both wear- and impact-resistant and have approximately a 300-hour working life.
If overall nozzle durability is a significant concern, such as a harsh blasting environment, a tungsten carbide nozzle may be the better choice as it eliminates the risk of cracking upon impact.
Other Nozzle Considerations
Long venturi nozzles are the industry standard for blasting surfaces that are 18 to 24 inches away for hard-to-clean surfaces or 30 to 36 inches for loose paint and soft surfaces. We recommend short-venturi nozzles for blasting distances under 18 inches.
Venturi refers to the tapering within the blast nozzle. This shape decreases pressure while increasing velocity for the abrasive.
Both Silicon carbide and tungsten carbide nozzles are available with two types of threading: the standard 1-1/4” threading and the Clemco-exclusive contractor mounting thread that is wider to help prevent dust, dirt, and abrasive particles from getting stuck in the nozzle. You will need to choose a nozzle holder that has the same threading as your nozzle and the same ID/OD of your blast hose.

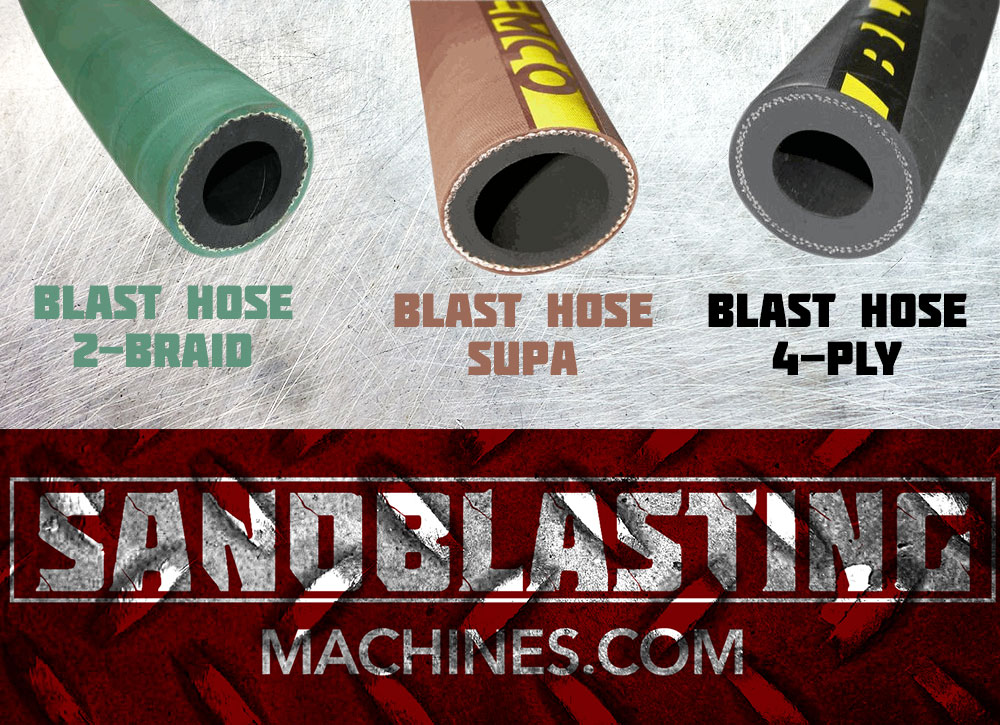

The whole is not always greater than the sum of its parts. This is especially true in sandblasting. Quality parts determine the quality of a blast machine. You can’t skimp out on a piece of equipment essential to sandblasting, and blast hoses are no exception. So, how do you determine which blast hose is right for you?Similarities Between the HosesAll [...]

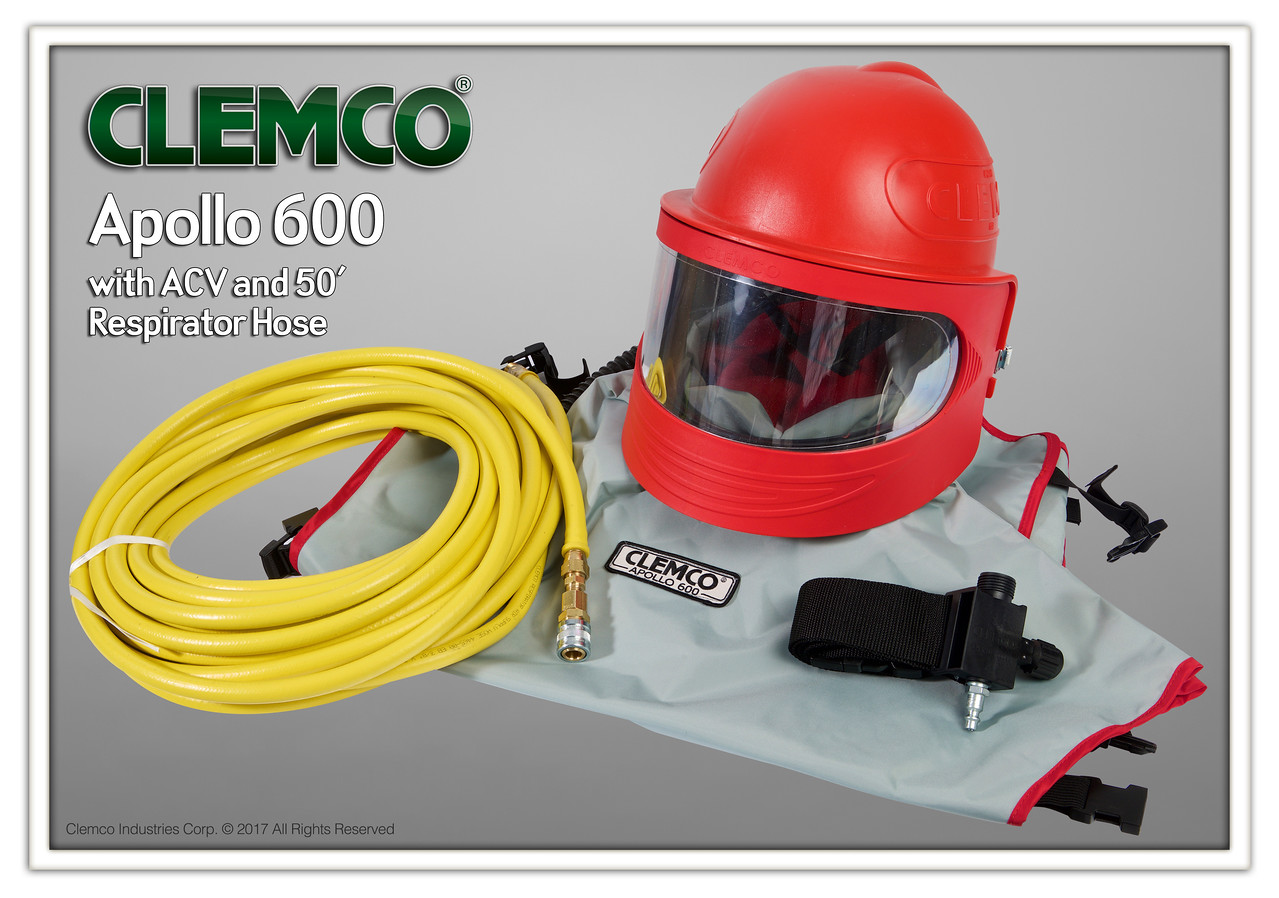

OSHA requires all individuals to wear NIOSH-approved supplied-air respirators in the presence of any dust, including but not limited to handling and loading abrasives, blasting or working in the vicinity of a blast job, and the cleanup of expended abrasive. Breathing air systems are critical in maintaining a safe work environment, which means you need to make sure you choose [...]
The Clemco RLX Control Handle is for the activation/deactivation of your blast machine. Learn more about this important R/C System component in this segment of "Off the Shelf" with John. Watch the Video Did you know that you can monitor carbon monoxide levels inside your respirator? The CMS-3 CO monitor/alarm can be moved from helmet to helmet [...]
Sandblasting is, for the most part, safe—unless you are not properly equipped. When you do not wear the proper sandblasting attire, you are directly putting yourself in harm’s way. According to OSHA, potential injuries of sandblasting include particles becoming embedded in the skin, eye damage, severe cuts, burns, or loss of body parts. Therefore, it is not wise to [...]
Weather affects sandblasting operations Sandblasting is a crucial job in industrial America. There is a constant push for this work especially with all the demands of the twenty-first century. However, we know that there can be limitations for the abrasive blasting industry, including weather. We know if the weather is too hot or cold, it can cause severe negative impacts [...]
Our customers are what makes us—without you, we don’t know where we’d be! That’s why we’re kicking off our Customer Spotlight Series today with Empire Radiator.Empire Radiator Based in Rochester, NY, these guys distribute and service heavy duty products including radiators and condensers, specializing in custom-built heat exchangers made from copper/brass and aluminum. They also make fuel lines and repair both [...]

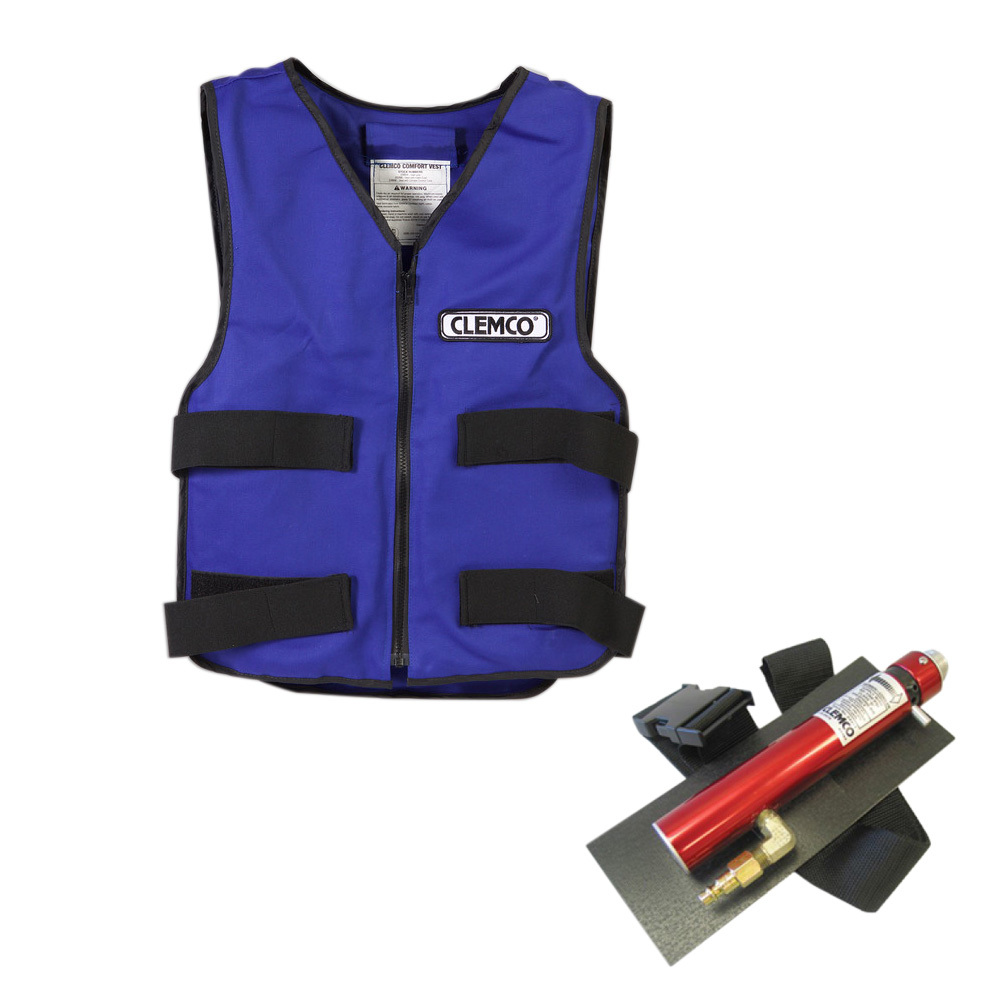

A common question we get here at SandblastingMachines.com is how to hook up your Clemco Comfort Vest. These one-size-fits-most vests are perfect for cooling down in the summer months or even warming up when it’s cold out. They’re lightweight and make the perfect addition to your blasting equipment.The Air Control Valve One of the main misconceptions is that [...]

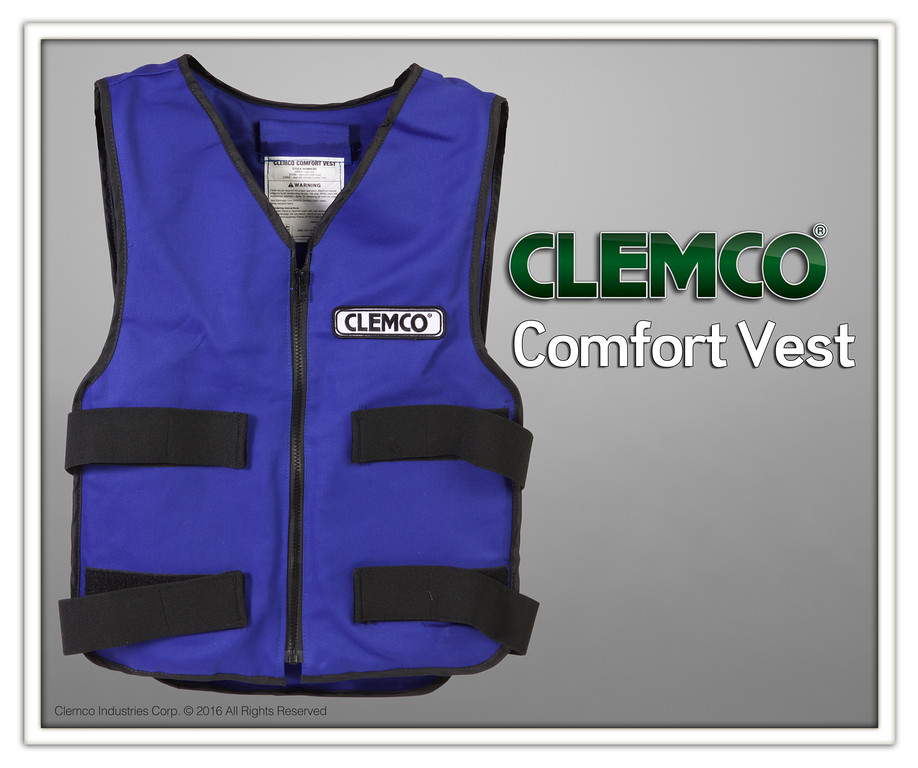

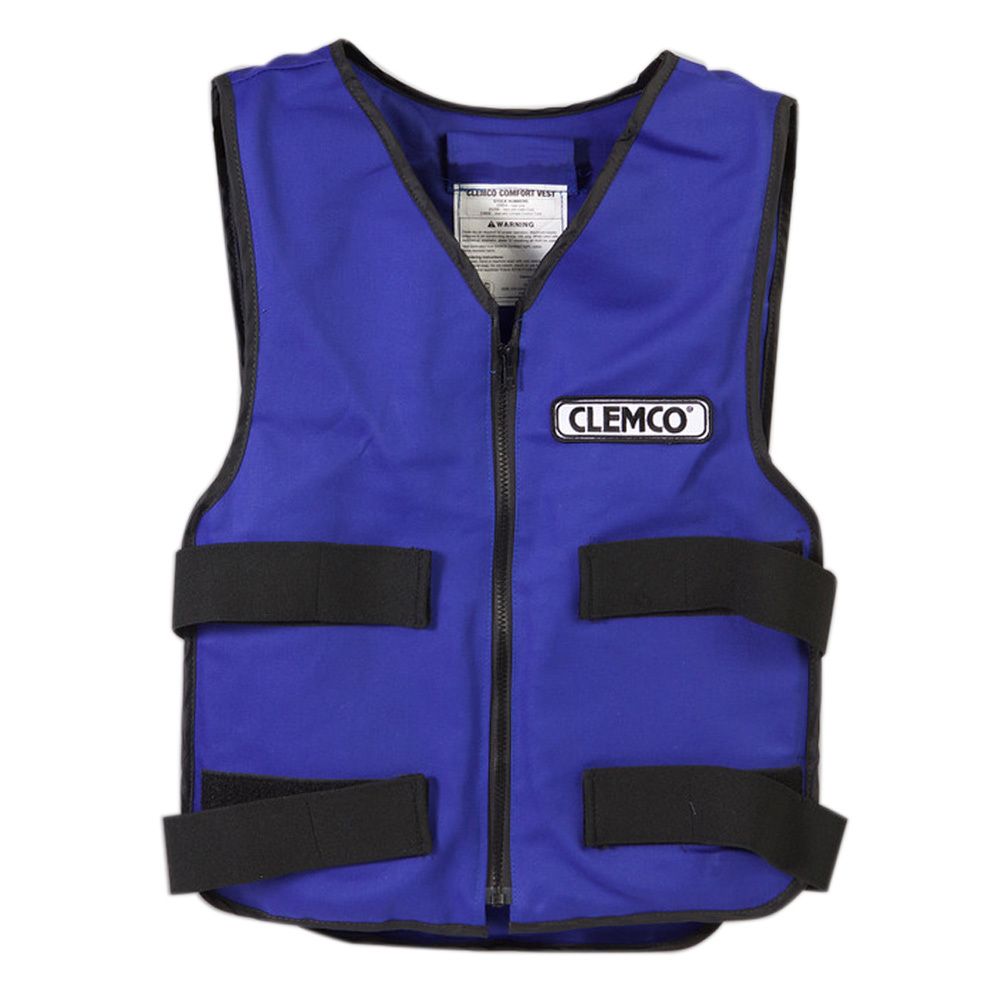

If you can’t handle the heat, you need this sandblasting vest in your life. Clemco’s Comfort Vest is a lightweight, one-size-fits-most protective garment for industrial workers exposed to stressful, extreme temperatures, either hot or cold. This vest can be used for warming or cooling in both indoor and outdoor blast environments. Operating sandblasting equipment in extreme environments is a safety hazard to [...]
